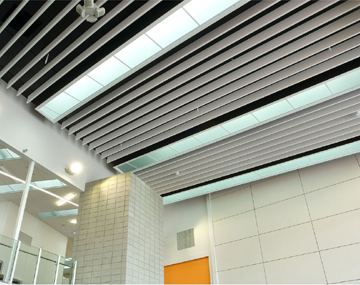

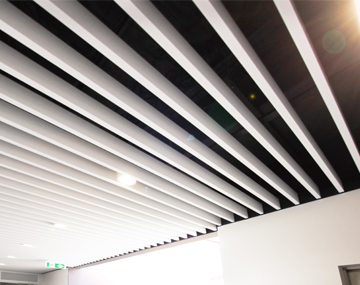

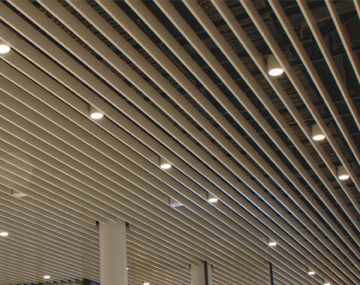

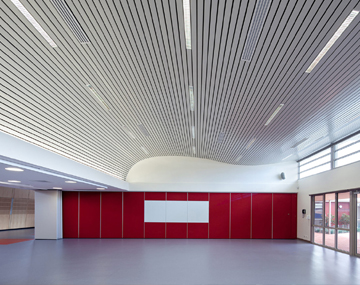

Discover the unique Baffle Ceiling System by ALUCRAFT. The open ceiling construction with vertical and linear bars offers comfort in many ways. With its endless design options you can create inspiring room atmospheres.
Its acoustical features give users peace of mind. And the free space between the baffles allows for easy access to the plenum and the integration of luminaires, sprinkler and climate systems.
Our baffles are available in a wide range of materials, colours and designs. You can choose from wood decor, metal or aluminium. And straight, meandering or undulating shapes. Each bringing their own character spirit to the environment.
The Baffle Ceiling System is really easy to install with standard pre-punched carriers or rostwinkel, fixing it by clamping pieces. All fixation material and caps to cover the open ends are included. Also a lighting system can be added as accessory.
| Product Name | powder coating |
| Material | Aluminum Alloy |
| Color | wood |
| Thickness | 0.45mm |
| Cell Size | 50x50mm |
| Width | 10mm;15mm |
| Height | 30mm~80mm |
| Surface Treatment | PE Coated(Ordinary Powder or Polyester Powder ), Roll Coated |
| Function | Fireproof, Heat Insulation, Moisture-Proof, Mould-Proof, Smoke-Proof, Sound-Absorbing, Soundproof, Waterproof |
| Used | Office, Supermarket, Shopping Mall, Meeting Hall,Restaraunt, etc. |
| Ceiling Type | Open size(mm) | Width Height(mm) | Thickness(mm) | Length(mm) |
| Aluminum Grid ceiling | 50*50 | Width:10/15 | 0.35~0.6 | 2000 |
| 75*75 | Width:10/15 Height:35/40/45/50/60/80 |
0.35~0.6 | 1950 | |
| 100*100 | Width:10/15 Height:35/40/45/50/60/80 |
0.35~0.6 | 2000 | |
| 125*125 | Width:10/15 Height;35/40/45/50/60/80 |
0.35~0.6 | 2000 | |
| 150*150 | Width:10/15 Height:35/40/45/50/60/80 |
0.35~0.6 | 1950 | |
| 200*200 | Width:10/15 Height:35/40/45/50/60/80 |
0.35~0.6 | 200 |
